KAS Tubular Latch Dimensions

This document contains information on KAS Tubular Latches
Models included in this document:
  1. NTL060 – (60 mm backset)
  2. NTL070 – (70 mm backset)
  3. NTL127 – (127 mm backset)

Latch Dimensions

Strike Plate

Tube Flexibility

Throw/Retraction

Turning Angle

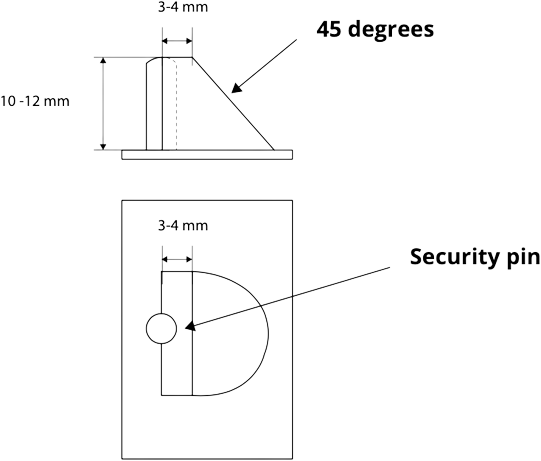

Latch Head Shape

Attachments
