Introduction
The HAR300 Access Control is most commonly installed in common areas/gates/front doors for accommodation sites.
This unit can also be used in conjunction with the Lock-S lift control system as the ID reader.
Supporting technologies including:
- RFID Cards & Fob Access
- Smartphone App Access
- Online Control & Management via S1 Gateway
- Keypad Pin Code access.

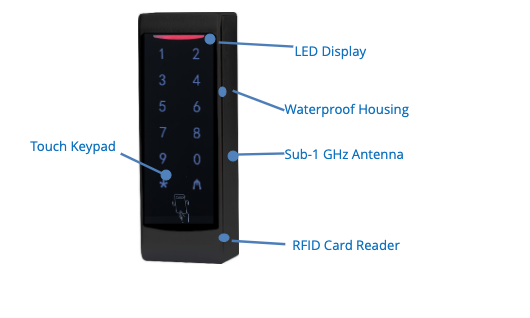

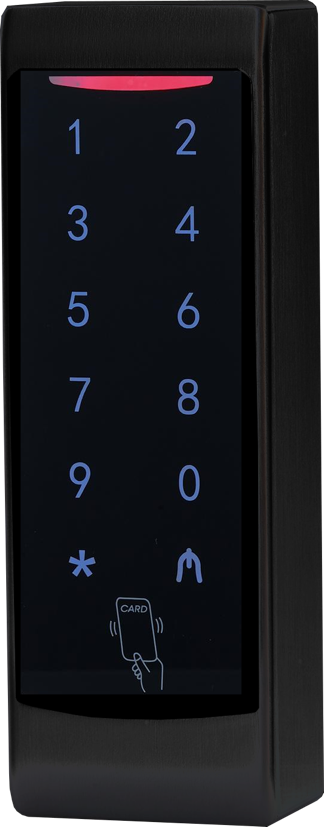

Images
Dimensions
|

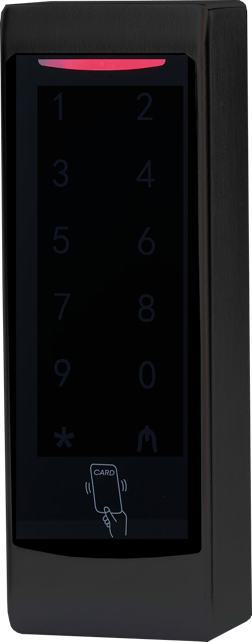

Height: 115mm Width: 40mm Depth: 25.6mm Weight: approx. 150g HAR300 Display when the Keypad is disabled |
Technical Specification
|
|
HAR310 |
HAR311 |
|
Power |
12 V DC / 2A |
9 V DC / 2A |
|
Rated Current |
Max. 100 mA |
Max. 100 mA |
|
Door Sensor input |
Dry contact |
Dry contact |
|
Exit button input |
Dry Contact |
Dry Contact |
|
Relay rated voltage |
12 V DC |
9 V DC |
|
Relay rated power |
0.2 W |
0.2 W |
|
Relay output |
COM, NO, NC Dry contact |
COM, NO, NC Dry contact |
|
Relay contact |
Max. 100 m?? |
Max. 100 m?? |
|
Relay contact capacity |
24 V DC, Can pass 2 amps current |
24 V DC, Can pass 2 amps current |
|
Relay electrical life |
2 A / 24 V DC. over 100,000 times electrical life |
2 A / 24 V DC. over 100,000 times electrical life |
|
RFID |
ISO 14443 A |
ISO 14443 A |
|
RFID frequency |
13.56 MHz |
13.56 MHz |

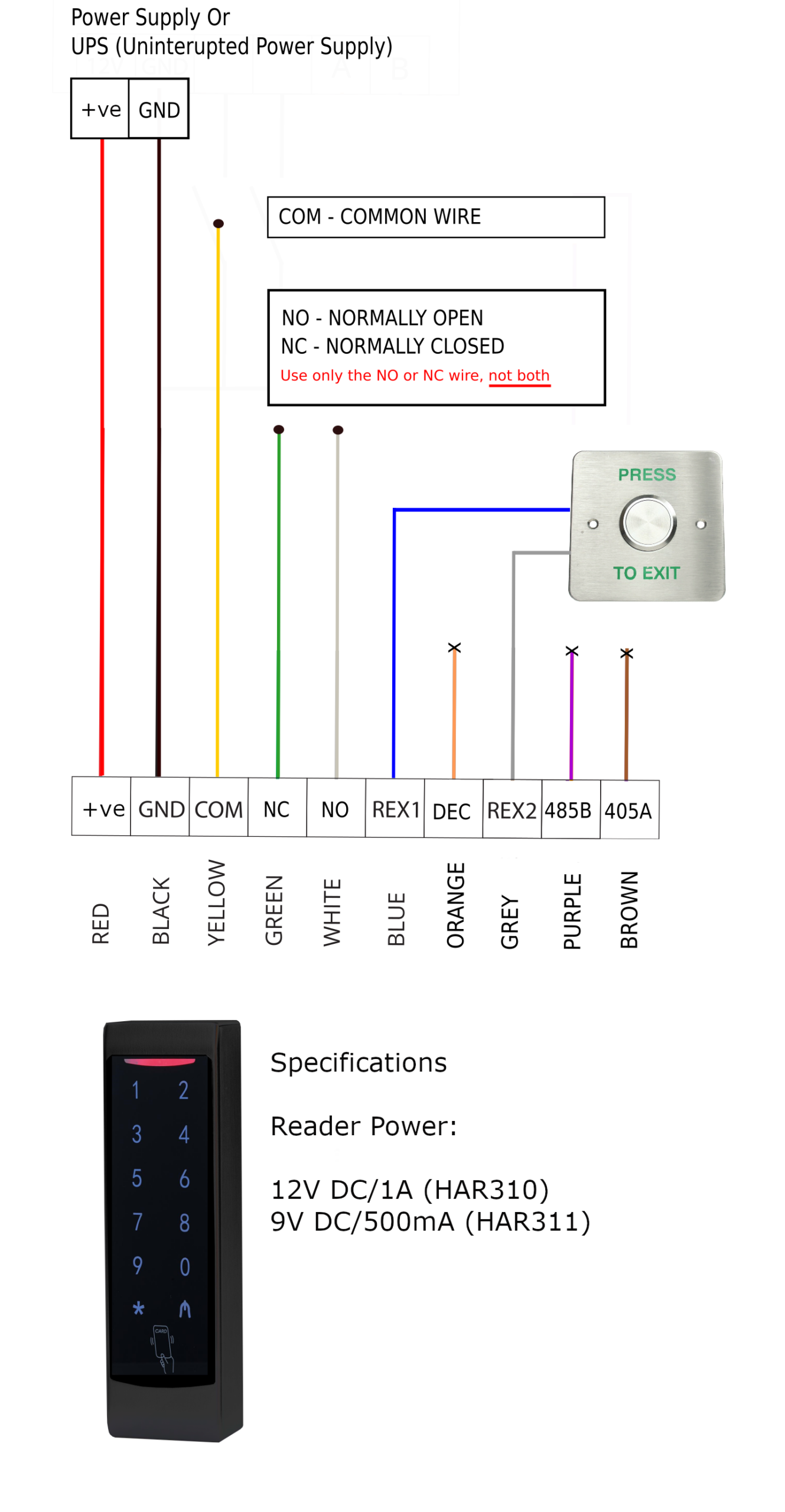

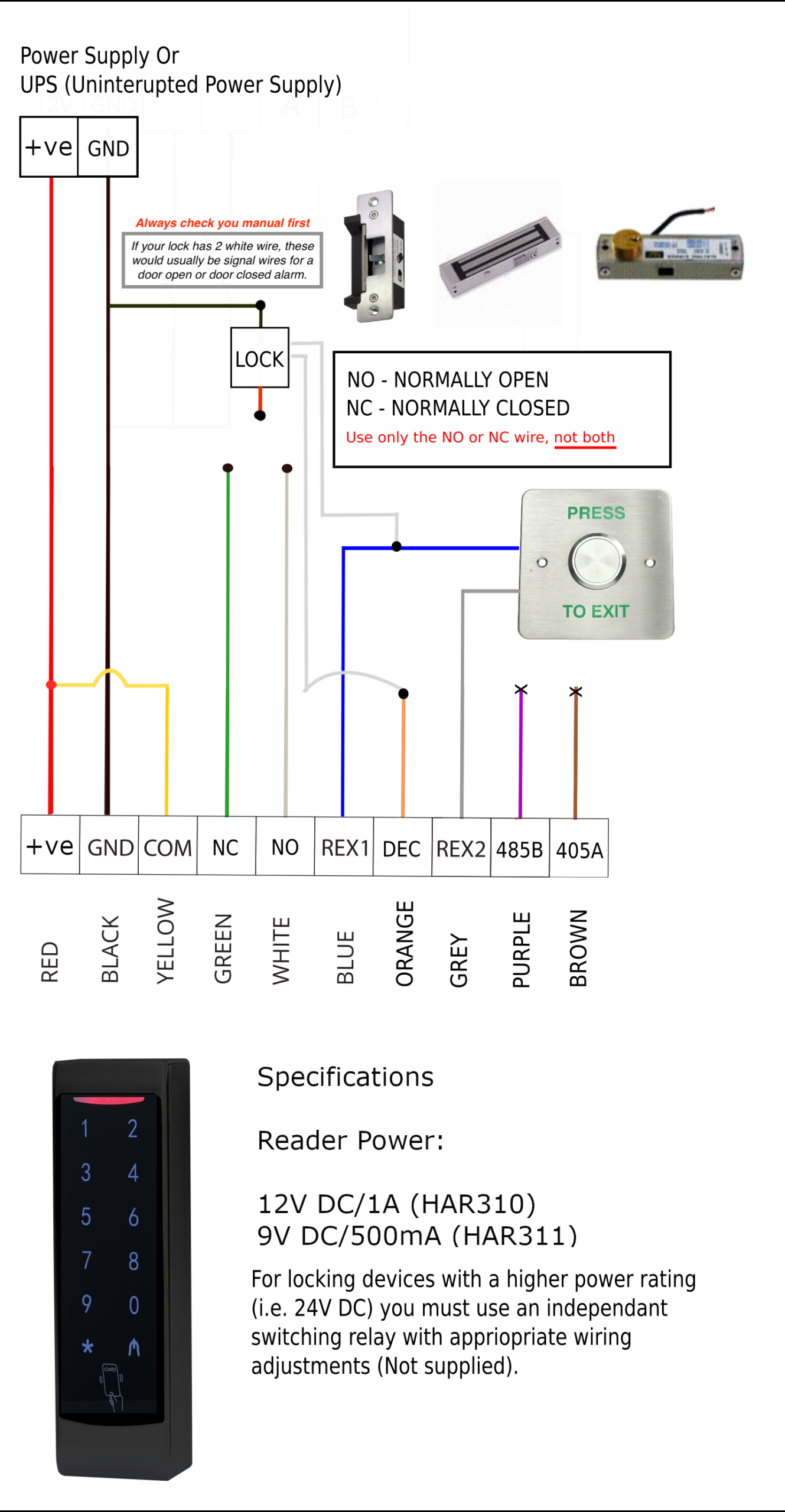

Wiring Diagram
Installation
- Cat-5 or Cat-6 cables is a suitable wire type for the ACR Power (Red, Black), REX switch (Grey, Blue), and NO, COM, NC wires (Yellow, White, Green) if using the relay as a dry contact or to switch a low powered electric strike (12V DC ~ 1A).
- If using a high power electric strike or high-powered electromagnetic lock, wire a figure 8 cable (or equivalent) between the power supply and the electric strike or electromagnetic lock.
- Max length for a Cat-5 cable between the Power Supply and ACR reader unit: 50 m
- Keypad ACR is fully waterproof and is compatible to install outdoors in direct exposure of rain.
- Power supply is not supplied with this product.
- Once the ACR is set up and ready to use, remove the clear plastic film that covers the keypad. Failure to do so will make it very difficult to remove in the future.
Gateway Connectivity

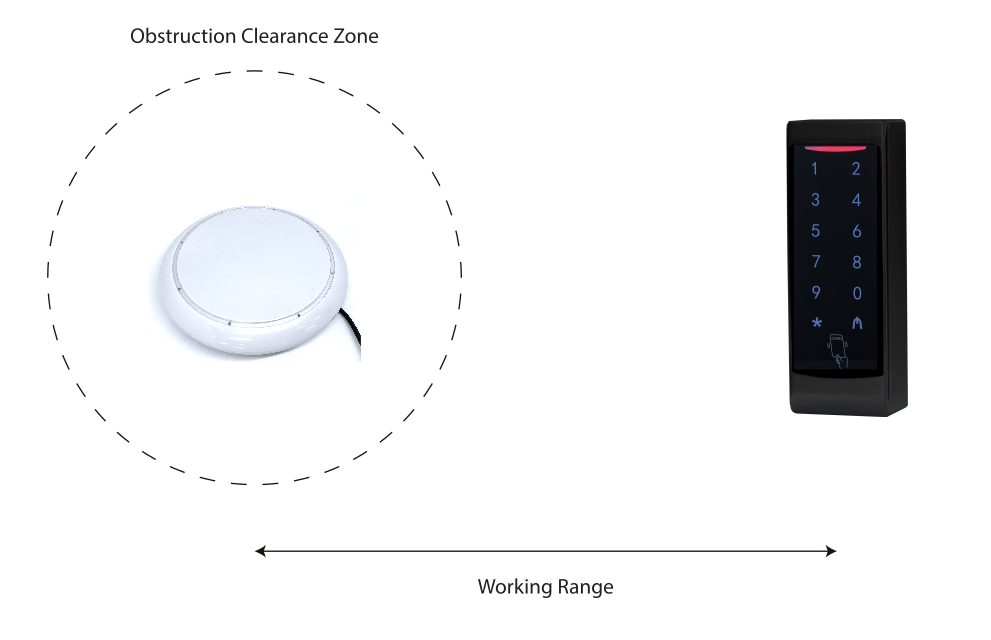

The HAR300 can receive online/internet control if a Gateway is activated in close proximity.
The Gateway and HAR300 will automatically discover and establish an online connection.
