Neo Cloud Lock – Specifications

Introduction The Neo is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site. Supports the latest technologies including: RFID technology Mobile ...

NEO specifications

Introduction

The Neo is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.

Supports the latest technologies including:

RFID technology
Mobile Access
Password entry

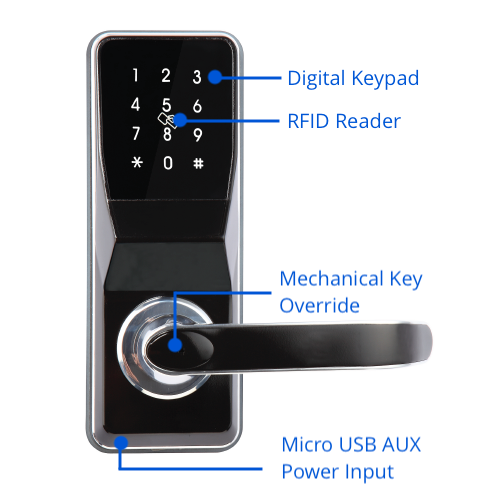

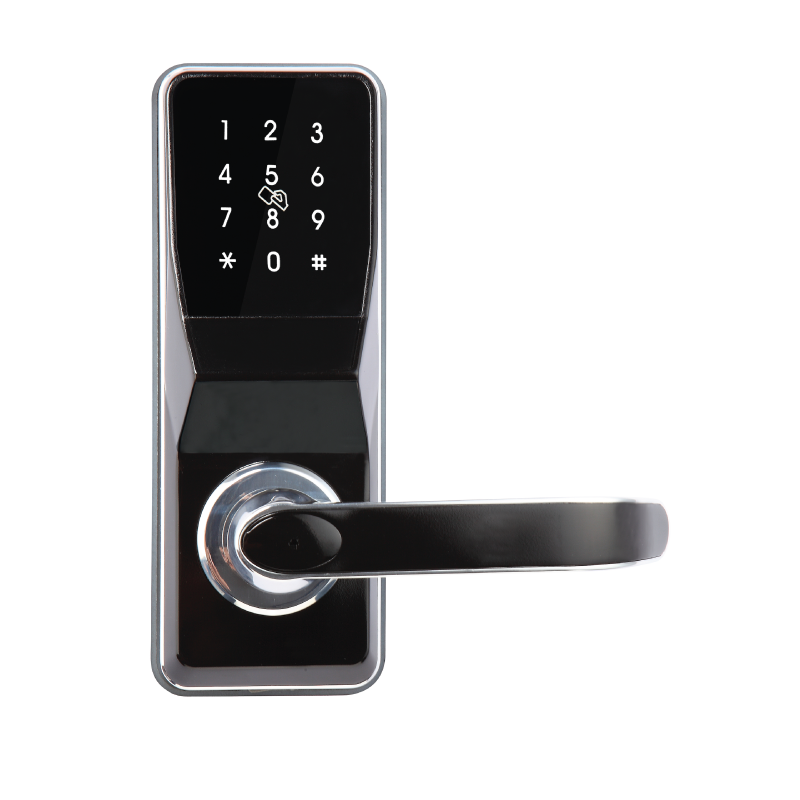

Front and Back Figure 01

Specifications

Technical Specifications

Door Thickness	34 – 60 mm thickness
RFID Specifications	13.56MHz Technology ISO 14443A (MIFARE)
Mobile Access	Bluetooth Low Energy (BLE) Smart 4.0
Working Voltage	DC 6.0V, (4 x AA alkaline batteries)
Limited Voltage	DC 4.3V – With Low Battery Warning
Battery Lifetime	8 – 10 months OR 3000 unlocking attempts
Working Temp	-20 to 60 Degrees Celsius
Working Humidity	20% – 90%
Emergency Power Supply	Micro USB power bank
Card Read Time	<0.8s
Warnings	Low battery warning function
User interface	2 coloured LED display (GREEN, RED) with buzzer
Keypad Display	12 digital numbers with white LED background
Adjustable volume	N/A
Adjust keypad LED intensity	N/A

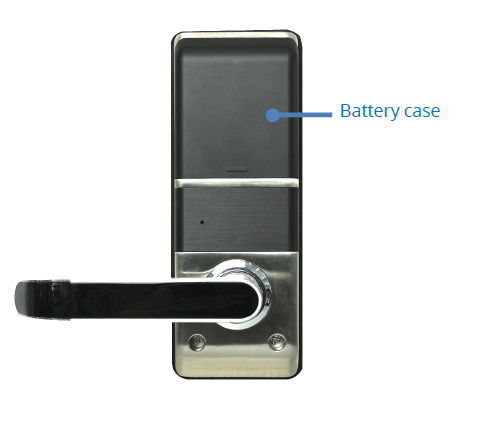

Battery location	Inside of the room
Privacy snib	N/A
Material	Primary: PCV0, Secondary: Stainless steel finish
Weather resistant	Rubber gaskets for water tight protection
Handle Orientation	Onsite reversible
Mechanical key override	2 x unique mechanical keys (supplied per lock)
Certifications	Fire rated to AS standards (up to 2 hours)
Door thickness	35-60mm (all parts supplied with every lock)

Application Specifications

Neo Gen 2 supports two modes: Self-Manage Mode and Hotel Mode

Neo Gen 1 supports each mode individually: Modes are shipped with each order.

	Self-Managed Mode	Hotel Mode
Local Pin Code Memory	100	N/A
Local RFID Memory	100	N/A – Unlimited generated from PC
Auto-Generated Pin Code	By App	By PC Software
Auto-Generated Pin Code Memory	Unlimited	1 at a time per lock
Auto-Generated Pin Code Length	8	10
Local Audit Trial	No	Yes – 820 unlocking records per lock
Online Audit Trial (Gateway required)	Yes	Yes
Free Passage Option	Yes – by keypad setting	Yes – by card setting
Free Passage by Gateway	No	No
Connectivity – Short Range	BLE Smart 4.0	BLE Smart 4.0
Connectivity – Long Range	SUB-1 GHz	SUB-1 GHz
Online Control	Gateway required	Gateway required
Standard Warranty	12 Months	24 Months

Certifications

Fire rated to AS standards (up to 2 hours)

Dimensions

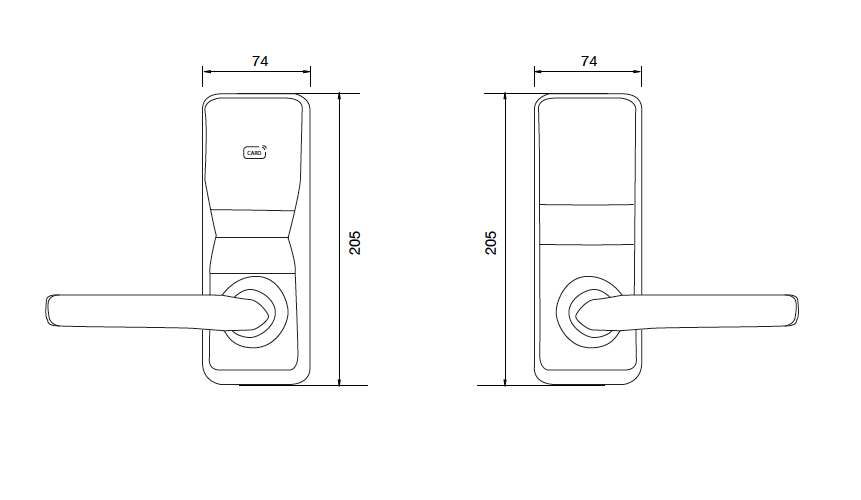

Lock Dimensions

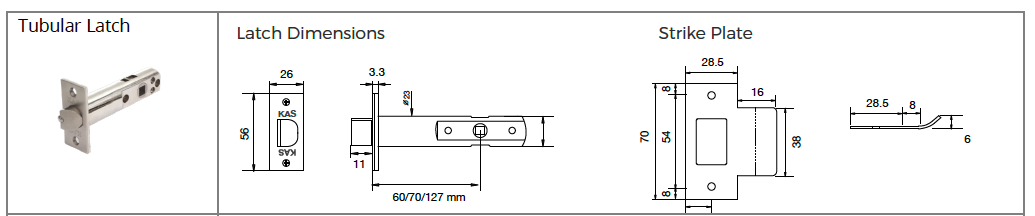

Latch Dimensions

Mortise Latch N/A

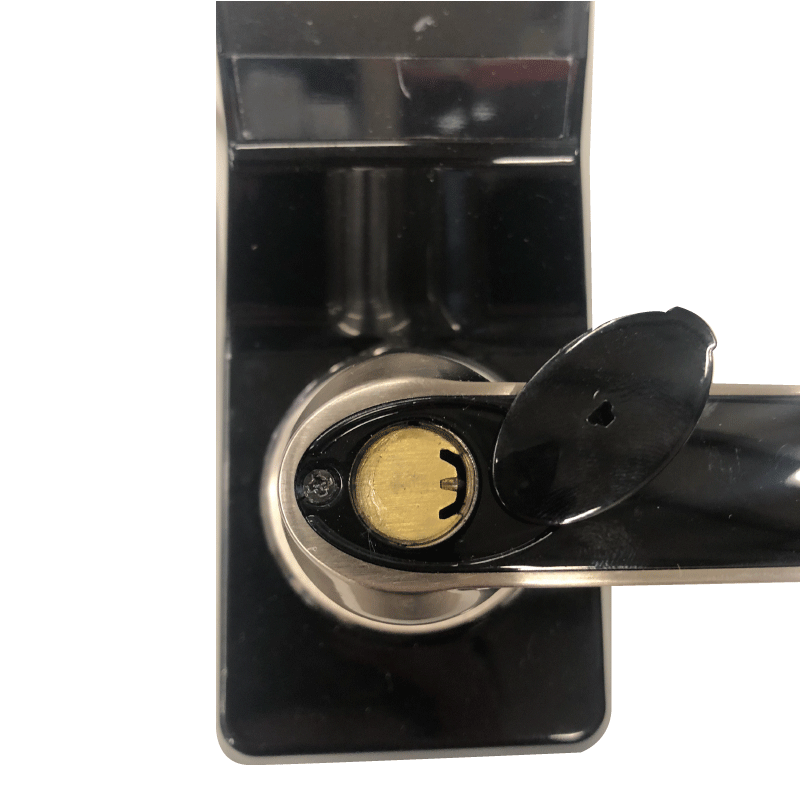

Mechanical Key Location

Neo Lock has a concealed mechanical key barrel for emergency override. In the case of electronics malfunction the mechanical keys can open the door.

2 x mechanical keys per lock
