Introduction
Used in conjunction with the LMS-Software & the LMS-Access Control System
The lift control system is used to control the floors the use can access
This control can be pre configured and selectable options at the time of checkinn
Example
e.g Guest in room 501 automatically has access to
- Ground Floor
- Pool
- Level 5
Selectable options
- Carpark
- Other Floors
LMS- Lift Control Components

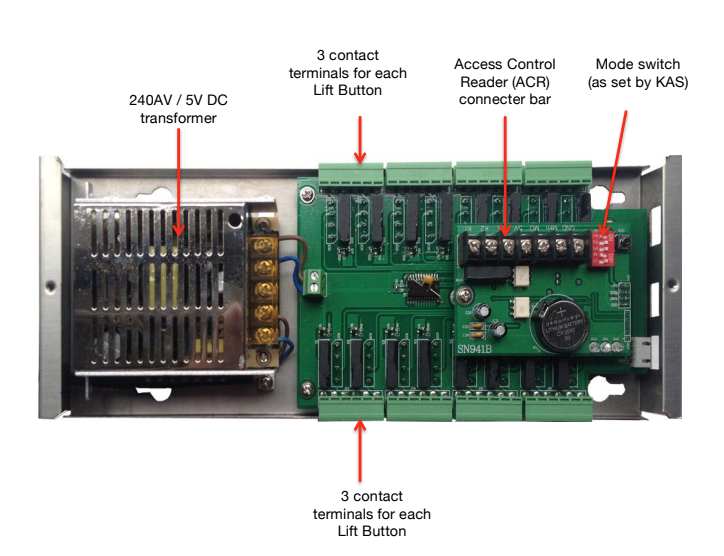

Figure 01 Lift Control Module | Model SN-910A
The following diagram shows the components of the Lift Control System, which incorporates the Access Control Reader (ACR) and the Lift Control Module (LCM).
KAS will have already setup the mode switch according to the client’s specifications; please do not change these mode switch settings.
Lift Control Components
Dimensions

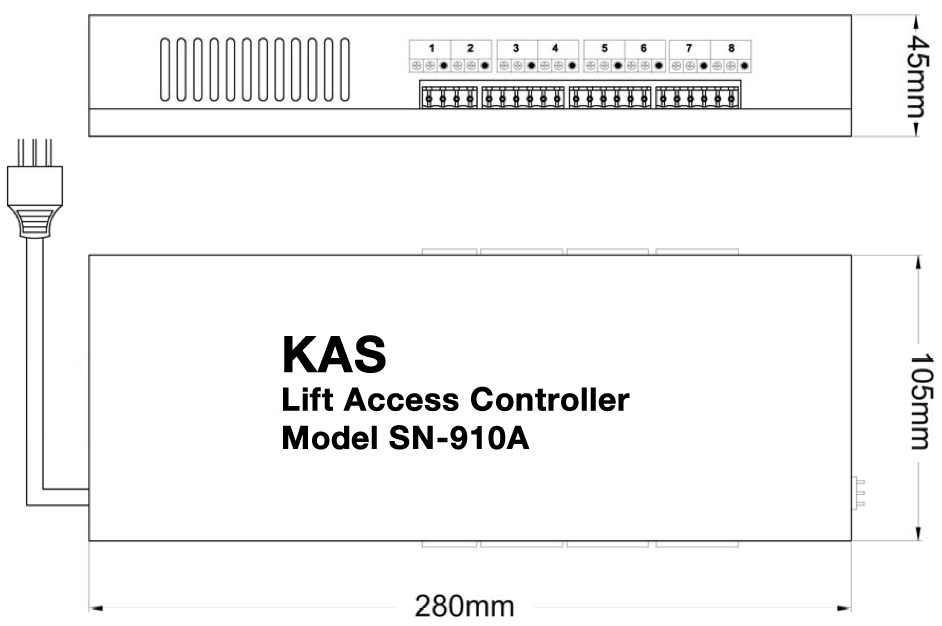

Lift Control Module Dimensions
Figure 02 List Control Module Dimensions
Installation tip:
The Lift Control Module (LCM) is generally installed on top of the roof of the lift cart, in close proximity to the rest of the lift system’s electrical hardware

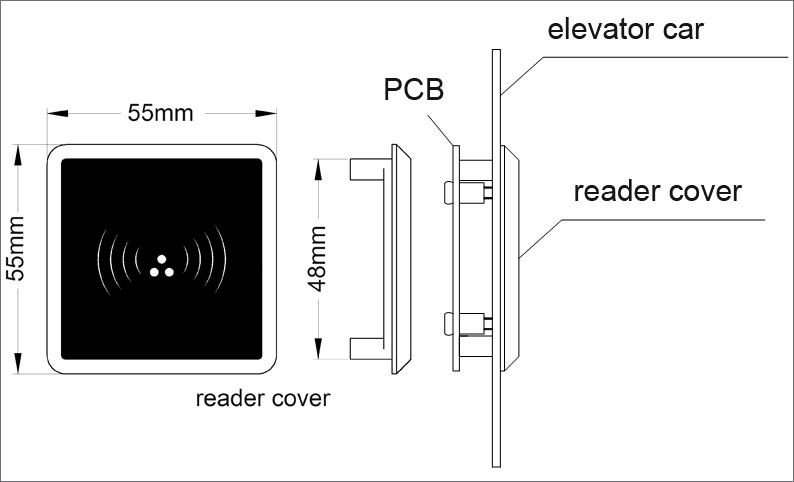

Access Control Reader (ACR) Dimensions
The following diagram shows the dimensions of the Access Control Reader (ACR)
Figure 03 Access Control Dimensions

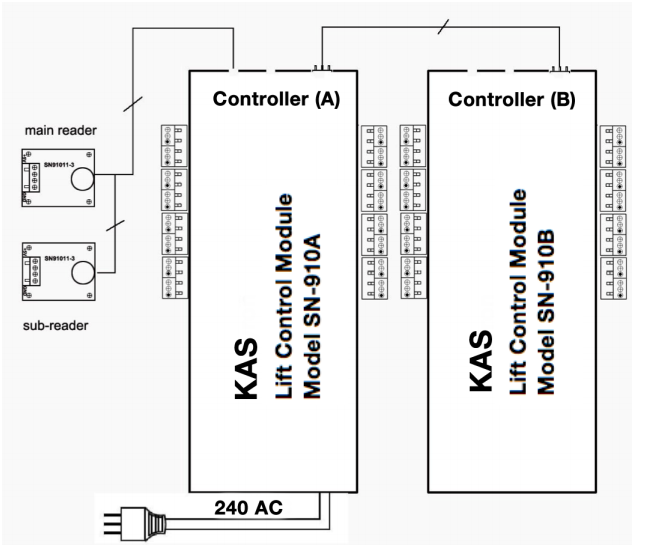

Requirements for Multiple LCM
Using controller (A) only, you can have up to 16 floors. For more than 16 floors, a second lift controller (B) will be attached, doubling your level capacity to 32 floors.
Connect Controller (A) to Controller (B).

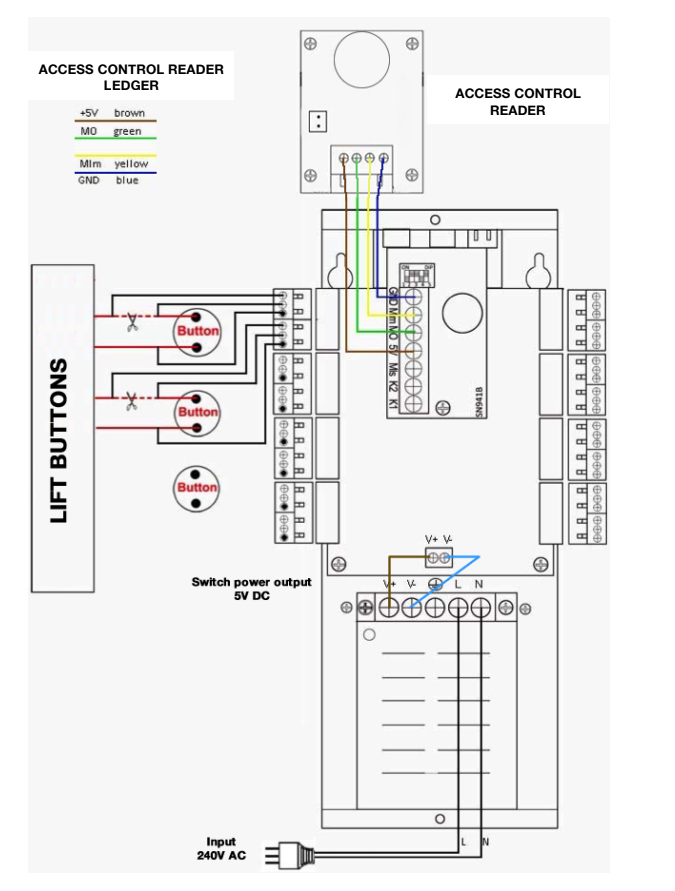

Wiring Diagram for LCM and ACR
Figure 04 Wiring Diagram
Installation Tips for LCS and ACR

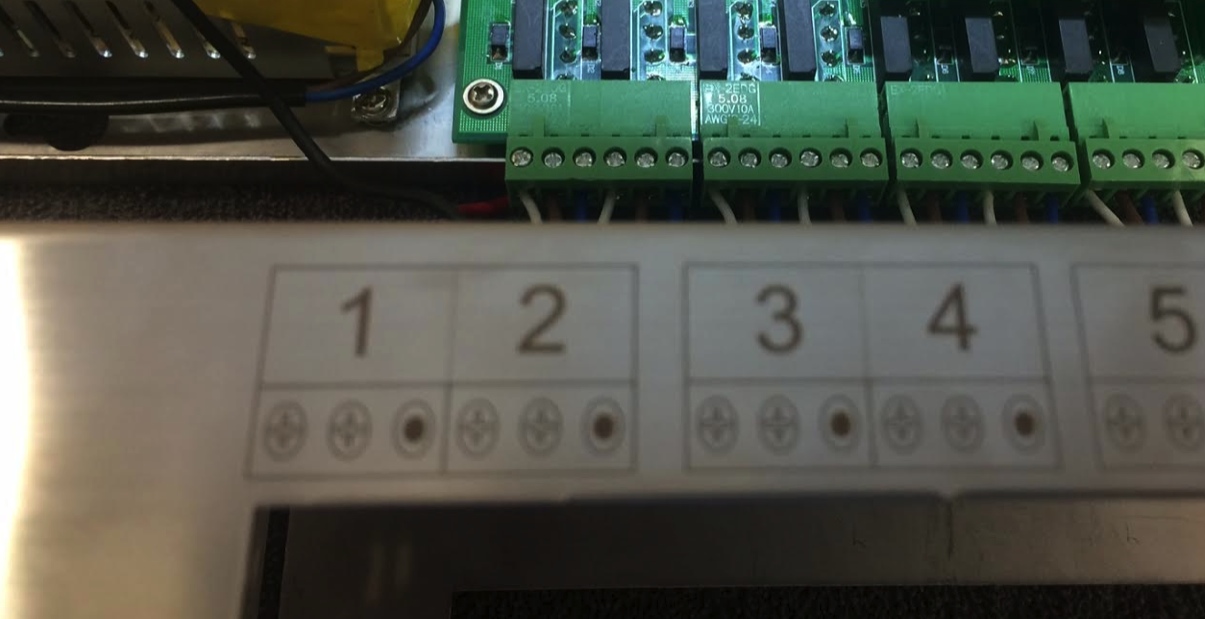

Lift button contact terminal
There are 3 ‘contact terminals’ for each Lift Button:
- Join the “DOT” contact to one side of the original Lift Button
- Remove the other wire from the Lift Button and join to one of the “+” contacts.
- Run a new wire from the other “+” contact back to the second side of each Lift Button.
The symbols for the button contact terminals are on the outside stainless steel cover
Summary of contact terminal setup for each lift button
‘+’ First terminal connected from the original Lift Button wire
‘+’ Second terminal contact with a new replaced wire to Lift Button
‘¤’ Terminal is to be joined with the other existing wire on the Lift Button
