Preface
This demonstration KAS Lock has been programmed with the following access credentials:
Pin code
- Wake up the keypad by touching the keypad (using the back of your hand)
- Press 1234#
RFID Cards and FOBs
- Move the RFID Card or Fob towards the centre of the lock face
Mobile Phone using BLE (Bluetooth technology)
- Download and Install the "KAS Cloud App" using the following QR codes
- Sign in using the your credentials
- Within bluetooth range, slide the Unlock button on your mobile phone
Remote Unlock from anywhere using your Mobile Phone or from KAS Cloud Web Console
From Mobile Phone:
- Select the lock on your mobile Phone
- Select: "Remote Unlock

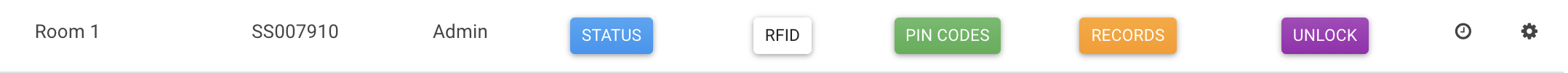

From KAS Cloud Web Console:
- Select the lock on your KAS Cloud Web Console account https://console.kas.com.au/
- Log in with your credentials
- Select the lok and select "Unlock"
- Select the lock on your KAS Cloud Web Console account https://console.kas.com.au/
- Log in with your credentials
- Select the lok and select "Unlock"
Local/Online Operation
Programming can be completed locally at the lock or via the mobile app or web console.
Pin Code
Specifications
- Capacity: 100
- Pin ID: Each user pin code has an assigned ID number.
- ID range: 00 – 99 [2 digits]
- User code length: 4-6 digits
Unlock the door by pin code
- Touch lock to wake up the keypad,
- Enter pin code [4-6] digits,
- Press ‘#’, Door will unlock.
Example: 1 2 3 4 5 6 #
Example: 2 3 4 5 #
RFID Card & Fob
This will add the RFID Card or FOB to access the door lock.
Specification
- Capacity: 100
- Frequency: Mifare S50 1k 13.56MHz
- Each User RFID Card has an assigned ID number. ID range: 00 – 99 [2 digits]
Unlock the door by RFID card or Fob
- Swiping the card over the lock face
- Door will unlock
