By System Card Locate the original System Card used to initially program the door. Note: you cannot use the PDA. Swipe the System Card once -> Red LED with rising tone Swipe the System card again -> Green LED with a single beep The lock is now ...
Locate the original System Card used to initially program the door. Note: you cannot use the PDA.
Swipe the System Card once -> Red LED with rising tone
Swipe the System card again -> Green LED with a single beep
The lock is now factory reset, all cards will not be invalid.
By Reset Switch
Remove the lock from the door.

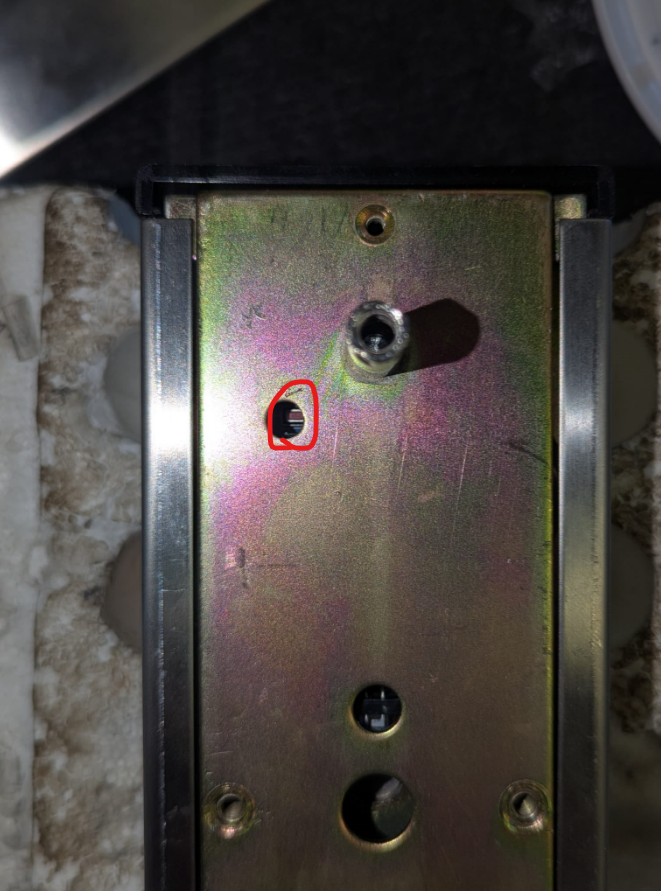

Press the SWITCH inside the slot on the front panel.
If you cannot see the hole as pictured (top left), you may need to completely remove the back panel.
Continue pressing the SWITCH until you hear the lock respond with a buzz tone
Result
The lock is now factory reset, all cards/pin codes will now be invalid.
all data and has been cleared from the device
In order to get the lock working, you will need to reprogram the door
If you are using Bluetooth, you will need to re-active the Lock using the Lock Keeper App and set the room number again. Go to the ‘Setup’ tab in the Lock Keeper App.
Platinum Drilling Template Speeds up installation time by 50-80%! Suitable for tubular latch or mortise latch 70mm backset only Wraps around the door and clamped in place to easily and quickly mark the drill holes Use the notches on the side to align ...
If you hear a long beep after you tap a card as shown below, it means your lock have weak batteries and needs to be changed immediately before the lock is completely dead. VIDEO
