Introduction
The Platinum is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.
Supports the latest technologies including:
- RFIDtechnology
- MobileAccess
- Sub-1 GHz wireless connectivity

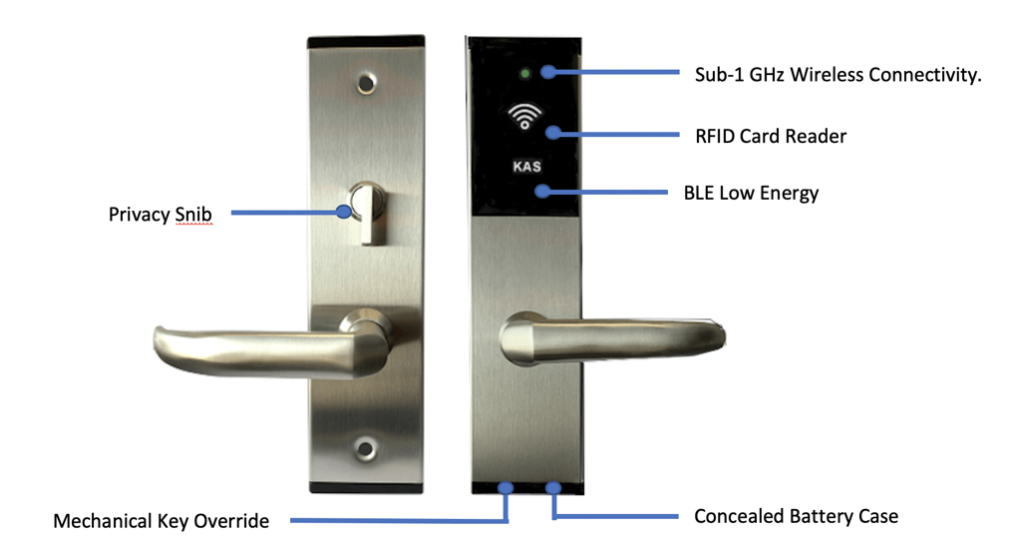

Images
Technical Specification
|
Door thickness |
34 – 55 mm thickness |
|
RFID Specifications |
13.56MHz Technology ISO 14443A (MIFARE) |
|
Wireless Technologies |
Bluetooth Low Energy (BLE) Smart 4.0, Sub-1 915MHz Wireless Connectivity |
| Card Limit |
300
|
|
Working Voltage |
DC 4.5V, (3 x AA alkaline batteries) |
|
Limited Voltage |
DC 3.0V |
|
Working Temp |
-20 to 60 Degrees Celsius |
|
Working Humidity |
20% – 90% |
|
Emergency Power Supply |
Not applicable (Battery Case accessible from the outside) |
|
Card Read Time |
<0.8s |
|
Warnings |
Low battery warning function |
|
User interface |
2 coloured LED display (green, red) with buzzer |
|
Keypad Display |
N/A |
|
Battery location |
Outside of the room |
|
Privacy snib |
90 degree rotation |
|
Material |
Body: 304 Stainless steel, Reader: High quality plastic |
|
Weather resistant |
Rubber gaskets for water tight protection (IP Rating in progress) |
|
Handle direction |
Not reversible – Left handle and Right handle selection required |
|
Mechanical key override |
2 x unique mechanical keys (supplied per lock) |
|
Certifications |
Fire rated to AS standards (up to 2-4 hours) |

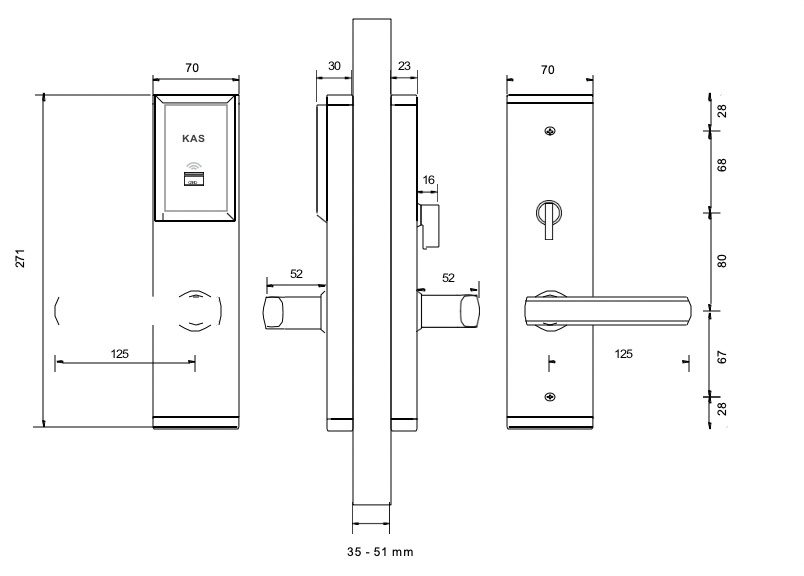

Dimensions

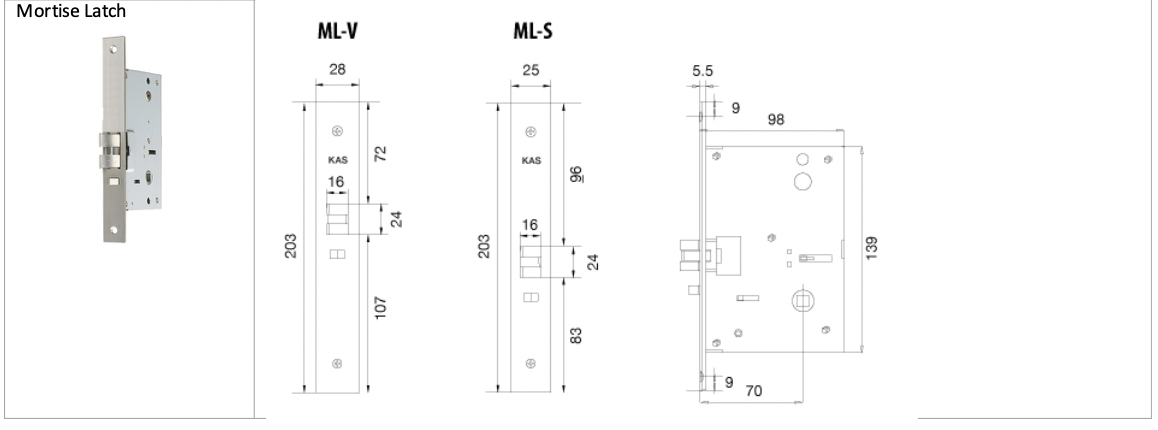

Latch Specification

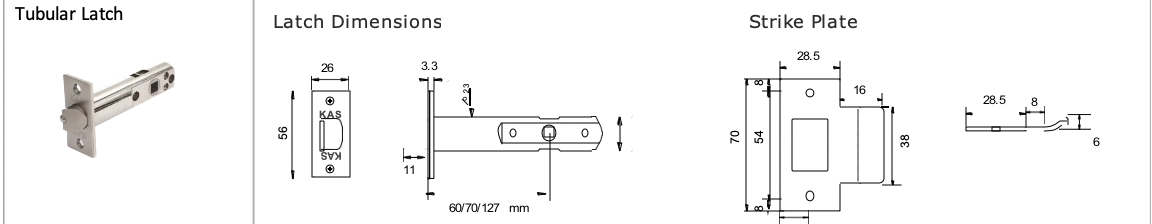

Tubular Latch

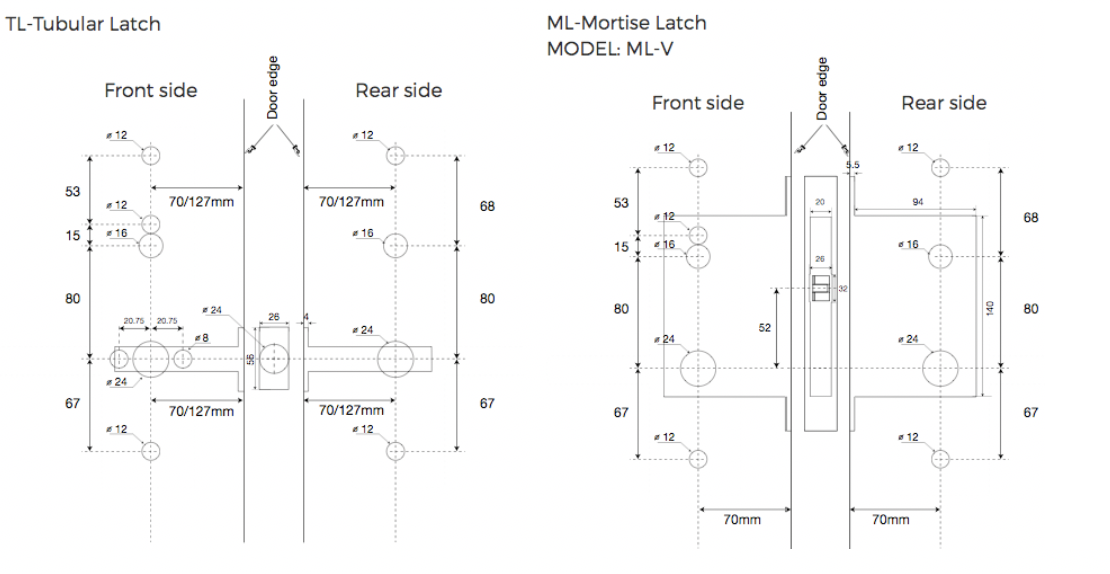

Drilling Diagram

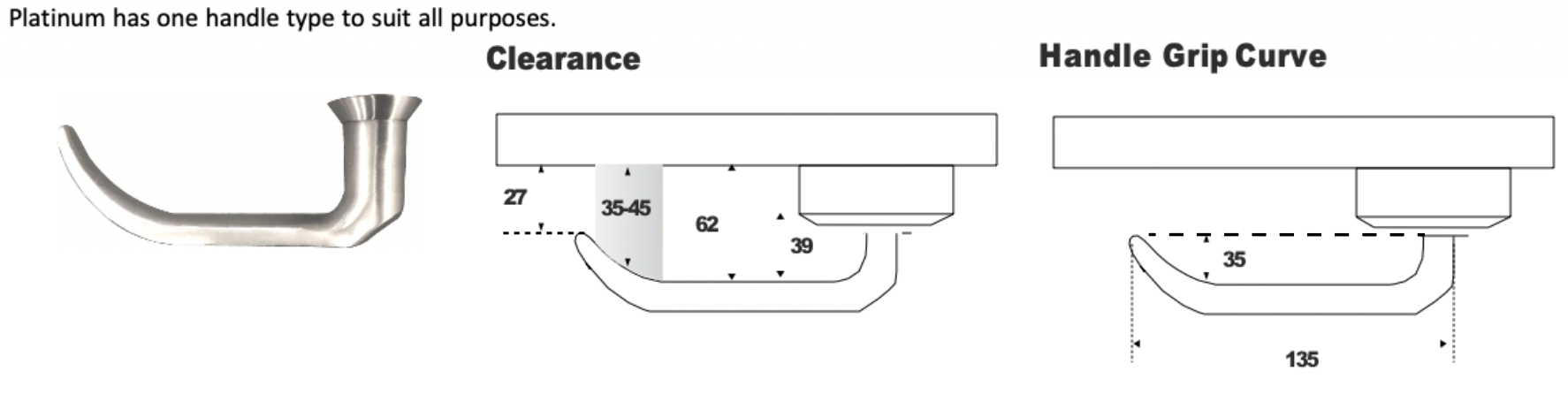

Handle Dimensions
Mechanical Key
