Lock-S Platinum Lock – Datasheet

Introduction The Platinum is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site. Supports the latest technologies including: RFID technology BLE ...

Lock-S specifications

Introduction

The Platinum is a modern lock that appeals to the modern environment. It is a feature rich and durable lock hardware perfectly suitable to any type of accommodation site.

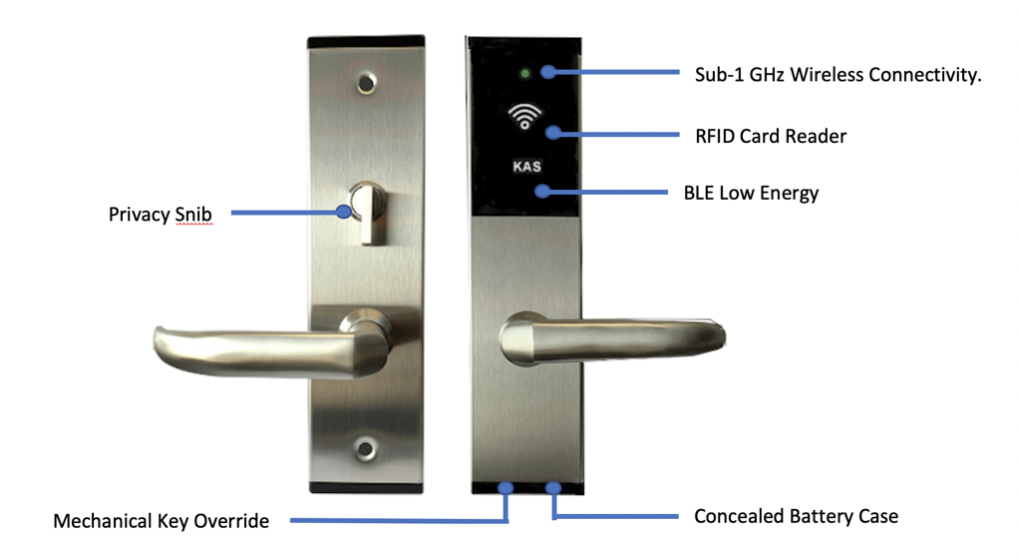

Supports the latest technologies including:

RFID technology
BLE
Sub-1 GHz wireless connectivity

Images

Technical Specification

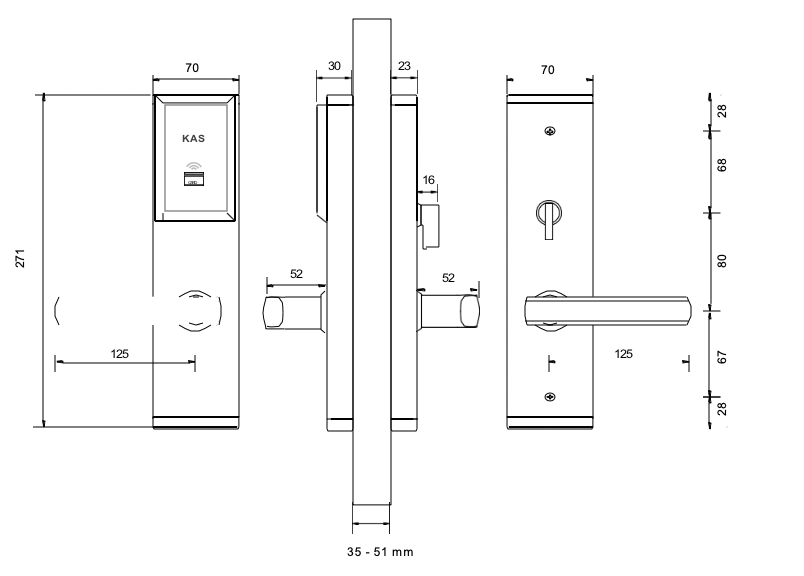

Door thickness	34 – 55 mm thickness
RFID Specifications	13.56MHz Technology ISO 14443A (MIFARE)
Wireless Technologies	Bluetooth Low Energy (BLE) Smart 4.0, Sub-1 915MHz Wireless Connectivity
Working Voltage	DC 4.5V, (3 x AA alkaline batteries)
Limited Voltage	DC 3.0V
Working Temp	-20 to 60 Degrees Celsius
Working Humidity	20% – 90%
Emergency Power Supply	Not applicable (Battery Case accessible from the outside)
Card Read Time	<0.8s
Warnings	Low battery warning function
User interface	2 coloured LED display (green, red) with buzzer
Keypad Display	N/A
Battery location	Outside of the room
Privacy snib	90 degree rotation
Material	Body: 304 Stainless steel, Reader: High quality plastic
Weather resistant	Rubber gaskets for water tight protection (IP Rating in progress)

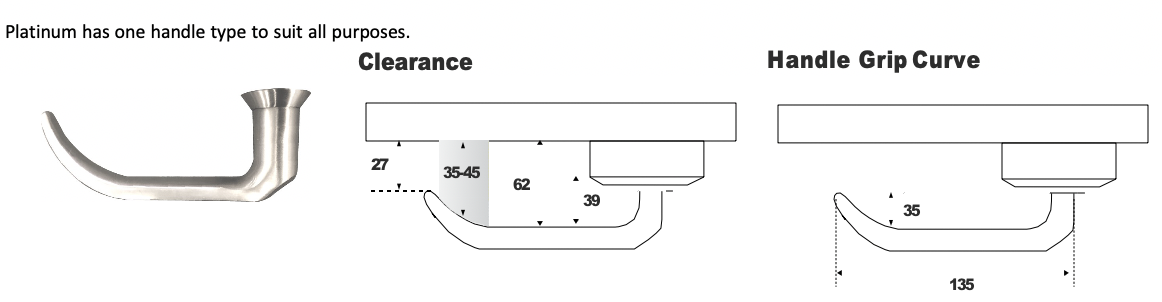

Handle direction	Not reversible – Left handle and Right handle selection required
Mechanical key override	2 x unique mechanical keys (supplied per lock)
Certifications	Fire rated to AS standards (up to 2-4 hours)
